| saves energy by controling lighting via applying wireless sensor using cutting-the-edge microwave! |
|
|
|
|

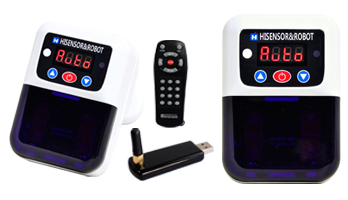

| HISR-S1000 |
|
Use : indoor, restroom, hallway, class room, rest area, hall etc
Feature : cutting-the-edge wireless communication sensor and Zigbee communication method
- imple control without central lighting control system or communication relay apparatus
- sensor built in the ceiling can sense objects in all directions
- easy repair/able to use two way remote control
- longest sensing distance(20m)& able to sense 160 degree
- on/off time regulated(1sec~9999sec): latest function
- group/illumination/sensitivity setting & auto/manual on/off
- overload prevention thermal fuse built in sensor
- sensor rated capa (within encouraged 5A)
- 2.4GHz frequency band used
Certified by : KCC, CE, ROHS
|
|
|
|
|
|

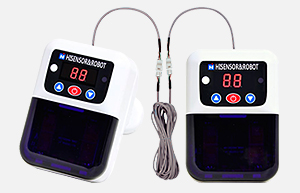

| HISR-S2000 |
|
Use : indoor, indoor, restroom, hallway, class room, rest area, hall etc
Feature : wire sensor with same function as HISR-S1000
- installed in space needing no wireless, cheaper price
Certified by : KCC
|
|

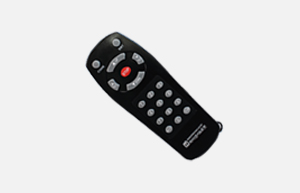

| HIREMOCON |
|
Use : HISR-S1000
Feature : able to change the setting of HISR-S1000 set high, using remote control
Certified by : KCC
|
|

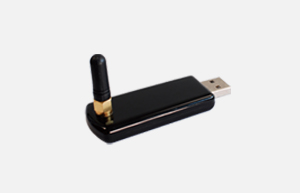

| HIDONGLE |
|
Use : HISR-S1000 monitoring
Feature : apparatus connecting HISR-S1000 to PC
- monitoring current status of sensor, able to change its setting using PC
Certified by : KCC
|
|
|
|
| Installation example / Effect |
| Area installed |
Area(pyeong) |
No. of lights |
Sensor installed |
Elec consumed(kWh) |
Remarks |
| no |
amount |
before install |
after install |
| Underground parking |
50 |
15 |
3 |
inquire quote |
712 |
427 |
In case of parking lot over 100 pyeong, it may be necessary to install an additional electricity distribution head(For details, please inquire quotes.)
|
| 100 |
30 |
6 |
inquire quote |
1424 |
854 |
| 200 |
60 |
12 |
inquire quote |
2848 |
1709 |
| 500 |
150 |
25 |
inquire quote |
7128 |
4270 |
| Office |
25 |
6 |
2 |
inquire quote |
285 |
256 |
| 50 |
12 |
5 |
inquire quote |
570 |
513 |
| Restroom |
3 |
3 |
1 |
inquire quote |
142 |
71 |
| 5 |
4 |
2 |
inquire quote |
237 |
118 |
| Hallway |
no of fluorescent lights : hallway length ÷ 3M
sensor : hallway length ÷ 10M |
|
|
| Case of sensor installed and its effect |
|
|
|
|

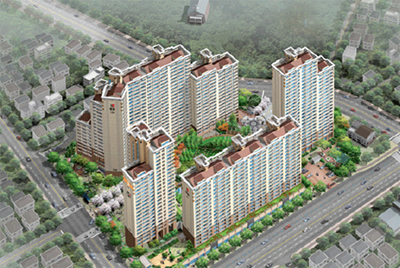

| Ssangyong Yega Susung-gu, Daegu |
|
- only applied to 2nd floor of underground parking
- the 1st underground floor is 24 hours on(uninstalled)
power used 6600kWh/monthly charge
- 2nd underground floor, sensor applied
power used 2700kWh/monthly charge
|
|
| Shuhan Hwasung Town Yongsan 2-Cha, Daegu |
|
- applied to all parking
- before install 6670kWh/monthly charge
- after install 1597kWh/monthly charge
|
|
|
|
|
|
|
|
 |
